16mm automatic stirrup benders anti twist stirrup bending machine

Automatic Stirrup benders

Stirrup benders are automatic rebar bender, double bending machine ,wire straightener,shearing machine in one. automatic stirrup bending machine / CNC stirrup bender price is competitive in China than Italy machine,Germany machine. 6-12mm rebar bending machine ,8-16mm stirrup bending machine is the most common equipment,it is widely used in building materials rebar shop, steel rebar cut&bend factory, construction site,precast company,foundation drilling company.

Itech have a series of stirrup benders machine,like CNC Stirrup Bending machine,CNC stirrup bar bending machine,stirrup wire bending machine and bar shape machine,cage welding machine, mesh welding machine,rebar shear line, rebar threading line, truss girder welding machine.anti twist Stirrup bender have advanced feeding system to avoid twist of steel, making standard rate reached 100%; cutting structure is used multi-faceted with a knife design, improve the rebar bender knife life. With international servo drive, big production capacity so that can meet requirement.

wire stirrup bender

  1. automaticreinforcement bender price in China, how does a bar bendig machine work.anti twist rebar bender have steel feeding system,stirrup bending system.cutting system.
  2. Itech stirrup benders adopt anti twist system, it increase the touch space of steel wire and press rollers, control the steel wire feeding direction, avoid twist when feeding. No gap on finial stirrups.
  3. Reinforcing steel StirrupBending Machine can making many different stirrups shapes , rebar stirrups can be used wire mesh or foundation pile cage.
  4. Cnc stirrup rebar bending machine can be used straightening machine, bar shaping machine,iron forming machine.

rebar cut and bend machine

itech wire bending machine were sold to all over the world ,customer used CNC stirrup bending / usded CNC stirrup bender successfully in many countries.

Itech as one professional steel wire/bar processing machinery China supplier,stirrup bending machine, rebar bending machine,cage making machine,,steel wire straightener, wire mesh welding machine,rebar shear line,sawing&threading line and related cnc plasma cutting machine, laser cutting machine can meet different customers’ requirement.https://itechbendingmachine.com/





The fastest high speed straightening and cutting machine steel wire straightener for mesh welding machine

The fastest high speed wire straightening and cutting machine steel wire straightener for mesh welding machine

wire straightening and cutting machine

High speed reinforcing steel wire straightening and cutting machine,also wire straightener, reinforcement steel wire straightening machine.it is steel rebar processing equipment in cut&bend factory and wire mesh factory. Itech automatic steel wire straightening machine price is not such high as European machine  schnell machine or evg machine.itech steel wire rebar straightener machine widely use in cut and bend factory, precast factory, building materials store.We have tnt ring making machine,rebar shear line, stirrup rebar bender, rebar cutting machine ,automatic pile cage making machine,steel wire mesh welding machine…..cut and bend machine.

High speed Wire straightening machine have many unit.like Technical Parameters :mainly divided into 5 parts, such as

1, unloading payoff ;

2, straightening machine;

3, collect bench;

4, electrical System;

  1. air compressor
  2. Unloadingpayoff

The payoff includes a base, a discharge tray,  tension detection, etc. Bearings are installed between the base and the turntable, so that turntable can rotate flexibly when it is working, and the brake mechanism can adjust the flexibility of the turntable when there is no discharge, so that the parked steel plate will not automatically disperse;



  1. Straightening machine

Straightening mechanism includes base, frame, feeding wheel and guiding mechanism etc. Straightening wheels include spinner type straightening method.Installed on the slider, adjusting the straightening spinner block to a suitable position can achieve the purpose of straightening the steel bars.cutting motor cutting to length.

  1. collection bench

The main machine is the wire collect bench part of this wire  machine, including measure parts, output line parts,  other parts are driven by penuamtic cylinders.c. Upper welded part: Weld the upper end of the upper chord bar and the two oblique bars after wavy bending together. The upper chord bar fine-tuning knob can fine-tune the relative height of the upper chord bar and the oblique bar.



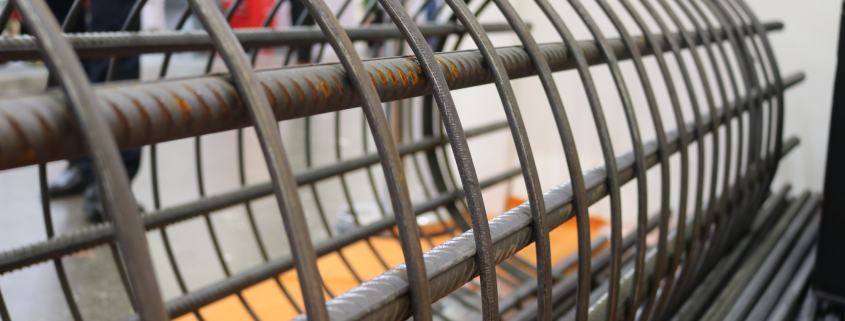

pile cage welding machinestirrup bending machine

The electrical system includes a high and low voltage power distribution cabinet, an operation console, a pneumatic circuit for discharging and unloading, etc.

  1. Safety mechanism: It is activated by a button switch to ensure product or personnel damage caused by improper operation by employees. The cooling water of the main engine is completely isolated from the high-voltage power supply, thereby ensuring the safety factor during operation. Danger warning signs are posted in high voltage or dangerous areas of the equipment.

Itech insist provide best service for all customers.As high quality rebar machine supplier China,we want to provide customers more quick and more reliable service.

ITECH stirrup making machine is stable. Automatic stirrup bender, With advanced feeding system,also called anti-twist system. It is feature as shape rebar feeding,servo motor control rebar bending, rebar cutting.It use servo motor as power, extra encoder make accouter, so make tolerance more small and high precision. It can process 6-12mm single wire, 6-10mm double wire, one hour can up 1600 pieces production capacity.

Itech as one professional steel wire/bar processing machinery China supplier,stirrup rebar bending machine, rebar bending machine,cage making machine,,steel wire straightener,truss girder welding machine,lattice girder making machine, steel wire mesh welding machine,rebar shear line,sawing&threading line and related cnc plasma cutting machine, laser cutting machine can meet different customers’ requirement.check website http://www.itechbendingmachine.com



What’s Full automatic reinforcing steel truss lattice girder welding machine?

What’s Full automatic reinforcing steel truss lattice girder welding machine?



Full automatic reinforcing steel truss girder welding machine,also called reinforcement steel rebar lattice making machine,lattice welding machine.it is steel rebar processing equipment in cut&bend factory and precast concrete factory. Itech automatic wire mesh weding machine price is not such high as European machine  schlatter price.itech steel rebar truss lattice girder welding machine widely use in cut and bend factory, precast factory, building materials store.We have tnt ring making machine,rebar shear line, stirrup rebar bender, rebar cutting machine ,automatic pile cage making machine,steel wire mesh welding machine…..cut and bend machine.

lattice girder welding machine

Lattice girder welding machine have many unit.like Technical Parameters :mainly divided into 6 parts, such as

1, unloading payoff ;

2, straightening frame;

3, main engine;

4, unloading frame;

5, hydraulic system;

6, electrical System;

  1. Water cooling system
  2. Unloadingpayoff

truss girder welding machine

The payoff includes a base, a discharge tray, a brake mechanism, a guide mechanism, material shortage detection and tension detection, etc. Bearings are installed between the base and the turntable, so that turntable can rotate flexibly when it is working, and the brake mechanism can adjust the flexibility of the turntable when there is no discharge, so that the parked steel plate will not automatically disperse;

Material shortage detection and tension detection are used to stop the machine and give an alarm at the same time when the material is short of material or the material is jammed.

  1. Straightening mechanism

Straightening mechanism includes base, frame, straightening wheel and guiding mechanism etc. Straightening wheels include horizontal straightening wheels and vertical straightening wheels, and half of the wheels.Installed on the slider, adjusting the wheel to a suitable position can achieve the purpose of straightening the steel bars.

  1. main machine

The main machine is the main functional part of this welding machine, including tensioning parts, pinch feeding parts, wave forming parts, upper welding parts, lower welding parts, limit parts, auxiliary feeding parts, foot bending parts, shaping parts, scissors parts, Outgoing parts. Except for the discharge parts, other parts are driven by hydraulic cylinders.

  1. Upper welded part: Weld the upper end of the upper chord bar and the two oblique bars after wavy bending together. The upper chord bar fine-tuning knob can fine-tune the relative height of the upper chord bar and the oblique bar.
  2. Lower welding parts: Weld the two lower chord bars to the lower part of the two oblique bars respectively, which can be adjusted up and down as a whole to meet the needs of different welding heights. e. Limiting parts: It plays a role in preventing the deviation of the steel bar during the welding process of the product. When the product shape is not straight, it can adjust the bending and twisting. The limit bar can be adjusted up and down, and the left and right stoppers can be adjusted at will.
  3. Auxiliary feeding part: synchronous feeding with the pinch feeding part through the connecting rod, which can prevent the steel bar from being pushed and bent during feeding.
  4. Scissors parts: according to the length of the product, the parts of the product can be cut, and the number of knots of each product can be set on the control panel according to the needs.

Set the number of nodes in units of integer multiples of the distance. The scissors must be aligned with the solder joints of the upper chord ribs to cut off the oblique ties together. You can pass the scissors

The button on the side adjusts the front and rear positions of the scissors to align with the solder joints of the upper chord rib.

  1. Discharge part: when the product is processed to the set length and cut by scissors, the product is sent to the unloading rack to facilitate unloading.

The tight head is driven by a cylinder, and it must have compressed air to move; the driving force is a motor and a synchronous belt drive.

  1. Unloading rack

The unloading frame includes a frame, a turning mechanism and an extended frame. The height of the frame can be adjusted according to the needs; the turning mechanism is driven by the cylinder.

  1. Hydraulic system

The hydraulic system includes a hydraulic station, hydraulic valves, regulating valves, accumulators, oil cylinders, oil pipes, and water cooling systems. Hydraulic rated working pressure is 8-9MPa. 6. Electrical system

The electrical system includes a high and low voltage power distribution cabinet, an operation console, a pneumatic circuit for discharging and unloading, etc.

  1. Water cooling system: sub-transformer group water cooling, upper and lower electrode group water cooling, output copper block water cooling, water distribution is realized through the water separator, the flow is controlled separately, and a water flow timely monitor is equipped to check the water flow to ensure the normal operation of the equipment work without damage.
  2. Safety mechanism: It is activated by a button switch to ensure product or personnel damage caused by improper operation by employees. The cooling water of the main engine is completely isolated from the high-voltage power supply, thereby ensuring the safety factor during operation. Danger warning signs are posted in high voltage or dangerous areas of the equipment.

truss girder welding machine

Itech insist provide best service for all customers.As high quality rebar machine supplier China,we want to provide customers more quick and more reliable service.

ITECH stirrup making machine is stable. Automatic stirrup bender, With advanced feeding system,also called anti-twist system. It is feature as shape rebar feeding,servo motor control rebar bending, rebar cutting.It use servo motor as power, extra encoder make accouter, so make tolerance more small and high precision. It can process 6-12mm single wire, 6-10mm double wire, one hour can up 1600 pieces production capacity.

Itech as one professional steel wire/bar processing machinery China supplier,stirrup rebar bending machine, rebar bending machine,cage making machine,,steel wire straightener,truss girder welding machine,lattice girder making machine, steel wire mesh welding machine,rebar shear line,sawing&threading line and related cnc plasma cutting machine, laser cutting machine can meet different customers’ requirement.check website http://www.itechbendingmachine.com

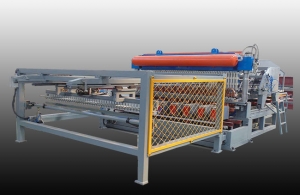

What’s Full automatic reinforcing steel wire mesh welding machine?

What’s Full automatic reinforcing steel wire mesh welding machine?



Full automatic reinforcing steel wire mesh welding machine,also called reinforcement steel wire mesh making machine, wire mesh machine.it is steel wire mesh processing equipment in cut&bend factory.Itech automatic wire mesh weding machine price is not such high as italy schnell ,schlatter price.itech wire mesh welding machine widely use in cut and bend factory, precast factory, building materials store.We have tnt ring making machine,rebar shear line, stirrup rebar bender, rebar cutting machine ,automatic pile cage welding machine,steel wire mesh welding machine…..cut and bend machine.



Wire mesh welding machine have many unit.like

1、line wire pay off;2、line wire detection;3、line wire

straightening;4、line wire traction & storage;5、 welder;6、line wire feeding(include: wire pay off, straightening,cutting,blanking);7、mesh shear&cut;

8、stacking;9、electric system;10、cooling system; 11、pneumatic system



1 、Line Wire Pay-off Mechanism

The pay-off mechanism includes the base, the discharge trays, the brake mechanism, etc. Bearings are installed between the base and the turntable, so that the turntable can be flexibly rotated when it is working, and the brake mechanism can adjust the flexibility of the turntable when there is no material discharged.In such case, the coil will not automatically spread. The single frame can bear 1200KG.

2 LineWire Detecting

Line wire detecting includes guild frame, material shortage detection, etc. When the line wire coil is used up, the machine will stop and alarm automatically, and the computer operation screen will show the lack of material.



3 Straightening Mechanism



The straightening mechanism includes base,frame,straightening rollers and guiding mechanism. The straightening roller includes a horizontal straightening roller and a vertical straightening roller, half of which are installed on the slider.It needs to be adjusted to a suitable position so thatit can make the straightening.



4Traction Storage Mechanism

The traction storage mechanism mainly includes:traction pressure wheel,storage rack,the detecting device etc. The wires passing through the straightening mechanism are provided with traction force by the pressure wheel traction

mechanism and sent to the storage rack. Detecting device is designed on the upper and lower sides of the storage rack to ensure that there are line wire to be provided to the host for welding purpose.



5Stepping Mechanism

The stepping mechanism mainly includes stepper traction components, precise

straightening elements and conduit etc.. Stepping traction is realized by clamping the wire through two sets of upper and lower pressing rollers, and the roller

is driven by the servo motor to pull the wires and control the spacing of the cross wire. The precise straightening elements straighten the wires by adjusting two sets of straightening rollers and it assures the quality of the mesh. The function of the conduitis to make sure straightness of wires.

6Welder & Feeding Stepper

It is composed of frame, air reservoir, pressurized cylinder, lifting device, welding transformer, cross wire terminal alignment part,cross wire detection

device,cross wire adsorption device etc. . It is key part of the whole line.The line wires enter the welding area through guiding elements, and the cross wire is

adsorbed to the space between the upper and lower electrodes by the magnet after falling into the welding area through the action of the blanking mechanism.when the cross wire detecting device detects the wires in place,the alignment valve acts which will make the length of cross wires terminals

alignment. Then the pressurized cylinder is activated,the welding transformer discharges and welds according to the set current and time. After the welding is completed, the pressurized cylinder returns

7Cross Wire Blanking Mechanism

It is composed of wire pay off mechanism,straightening device,gear box,cutter, blanking etc. Servo motor will pull out the wires from wire pay off mechanism and send them to straightening mechanism for straightening. After straightened, the wires will be cut by cutter and delivered to electrodes for welding

8Mesh Shear&Cut Mechanism

This part is used for shearing the mesh according to the product length.The mesh spacing and shearing position can be set through control panel according to the specifications.

9Mesh Stacking

It includes unloading rack,conveyance roller etc. The stacked meshes will be sent to packing area for winding and transportation

10, Electrical Control System

This system includes high voltage distribution cabinet and low voltage distribution cabinet one for each,one operation control bench for controlling the pneumatic circuit of welding and production line.



11, Water Cooling System

Cooling water system are composed by 4 parts: transformer water cooling,upper-down water

cooling,control box cooling.It assures the normal working of device and avoid any damage.

12, Pneumatic System

It is equipped with air filter device for purifying the compressed air and has a muffler.

The air reservoir is adopted to separate the impurity like dust,water and oil from the air and Pneumatic electromagnetic valve are used in this device.

Itech insist provide best service for all customers.As high quality rebar machine supplier China,we want to provide customers more quick and more reliable service.

ITECH stirrup making machine is stable. Automatic stirrup bender, With advanced feeding system,also called anti-twist system. It is feature as shape rebar feeding,servo motor control rebar bending, rebar cutting.It use servo motor as power, extra encoder make accouter, so make tolerance more small and high precision. It can process 6-12mm single wire, 6-10mm double wire, one hour can up 1600 pieces production capacity.

Itech as one professional steel wire/bar processing machinery China supplier,stirrup rebar bending machine, rebar bending machine,cage making machine,,steel wire straightener,truss girder welding machine,lattice girder machine, steel wire mesh welding machine,rebar shear line,sawing&threading line and related cnc plasma cutting machine, laser cutting machine can meet different customers’ requirement.check website http://www.itechbendingmachine.com









What’s advantage of Automatic reinforcing steel rebar shear line?

Automatic steel rebar shear line machine is a kind of cutting equipment mainly for large-diameter and high-strength steel bar. It can automatically cut the steel bars into the required length according to the needs, and classify and store the finished bars. machine. This machine is widely used in construction, highway and other industries. It is suitable for cutting steel bars of various specifications and cut to length. It is more suitable for cutting steel bars with many specifications and small batches. This machine reduces auxiliary labor, achieves the standard length of processed products, accurate size, high efficiency, simple installation and convenient use. In short, we strive for diversification in design to meet user needs, simple and effective, in order to reduce costs, pursue the best cost performance, and bring real efficiency and benefits to users.

reinforcing steel shear line

Highlight

Automatic reinforcement steel rebar shear line Product Features

  1. High degree of automation, greatly reducing labor intensity

2. PLC combined with touch screen control interface is easy to operate

3.  The whole machine is equipped with horizontal feeding device, which is convenient for feeding

4.  Automatic cutting machine head, suitable for a wide range of steel bars, can process multiple steel bars at one time

5. Free length-sizing device, precise length-sizing system, guarantees the accuracy of length-sizing, and can be set to any length (automatic and manual).

6. Diversified material storage devices can be used in a single warehouse or combined with multiple warehouses, and can provide a variety of different combination modes. Increased flexibility for rebar storage.

7. The main engine head adopts a centralized lubrication system to ensure reliable working conditions

rebar shear line

cut&bend factory

ITech steel bar stirrup bender. Itech have a series of steel rebar bender machine,like  CNC 16mm Stirrup Bending machine,CNC stirrup bar bending machine,stirrup wire bending machine and bar shape machine.advanced anti twist feeding system to avoid twist of steel, make stirrup more quick and standard. Rebar cutting system is used multi-faceted with a knife design. With international servo drive, high speed to feeding,big production capacity was highly improved.

Itech is good steel wire/bar processing machinery China supplier,stirrup bending machine, rebar bending machine,cage making machine,,steel wire straightener, wire mesh welding machine,rebar shear line,sawing&threading line and related cnc plasma cutting machine, laser cutting machine can meet different customers’ requirement.



what’s 50 stirrup bending machine and how to use sime automatic stirrup bender ?

what’s 50 stirrup bending machine and how to use automatic stirrup bender ? automatic stirrup bending machine is for rebar bending and cutting, widly use in constrcution company,cut&bend factory, building materials store, precast factory,industry company.



1  Technical Parameter of automatic stirrup bender



This series of steel bending machine can bend the round steel, carbon steel and rebar of II or III type, which are used in constructional engineering and mechanical processing enterprises.

   Ribbed diameter(mm) Ø8-50 [mm]
Work low speed 3 r/min
Work high speed 7 r/min
Round speed 1420 r/min
Labeled electric power 5.5 [KW]
Voltage 380 [V] – 50 [Hz]
Machine weight 700 [Kg]
Machine dimension 1200×900×800 [L*W*H](mm)

















4  External Form of Machine And Working Principle



GW-60 series of round steel bending machines look like the following.









GW series of round steel bending machines look like the above, the labeled parts are explained as the following.

  • Feeding Roller  2-Seat 3- Working Disk  4-Button  5- Electrical Control Panel

Feature of automatic stirrup bender

GW series of round steel bending machines are composed of drive gear, rack and workbench. When the machine work, the elect-motor make the gear spin by triangular belt and belt pulley, then the working disk rotate and make the workpiece curve. The series of machines possess some characteristics such as terse structure, reliable performance and novelty appearance, the worker can operate them commodiously. Beyond those, the series of machine have the following.

  • Cylindrical bearing installed on the principal axis of GW , it makes the machine no wear and not lubricate.
  • Operate the machine by press-button or foot pedal, alternative ways bring handiness.
  • Speed regulation by gear brings high efficiency.
  • Accessories for bending are thermal refined and have long service life.



5  Installation

5.1 Installation



5.1.1 Lay the machine indoor, take its road-wheels apart, and install it smoothly, make its table-board horizontal.

5.1.2 Put up feeding frame up to the machine’s feeding rotary drum, it’s height isn’t 8mm lower or higher than the feeding rotary drum, and avoid feeding frame to ward off the operating buttons.

6.1.3  Electrical Principle

  • The machine need three-phase electric, the value of every phase electric is 380 V.Connect 440v-380v transformer before start.
  • Control the machine by button, and provide electric protection measures.
  • First plug in, then launch the machine to find if electrical wiring work normally or not.



5.1.4 Before plug in, the earth leakage circuit breaker and default phase protector must be installed. Incorrect operation can cause personal injury or machine breakdown, the above is out of our company’s responsibility.

5.1.5 Make use of the machine for 3 months, remove the speed changing box’s hemi-shell cover, and supply lubricating oil in homologous position to assure the machine function well.



5.1.6 After plugging in, press inching button down to make the machine spin idle, check up if it works normally.







6 Operation

Make use of molding axle-sleeve, axle or sheath for limiting rebar and frame for dominating stuff, all kinds of shape in demand can be made by the GW series bending machines.Put the bending machine in use for a period of time, the operator should rotate the working disk 180 degrees, this can average wear and prolong the service life of the machine. Examples in common use are the followings.











6.2.1 Connect cable and footstep switch



6.2.2 To bend various diameter round steel, the operator should make correct selection about molding axle-sleeve, axle or sheath for limiting rebar and frame for dominating stuff refer to the size dimension of round steel and its ultimate strength.







The position of GW-60 tool for bending round steel (25mm to 60mm and 25mm to 70mm in diameter) is as the following picture shown.



1,2,4-Column Sleeve  3-Newel  5-Plank for steel column  6-Rebar

Notice1; When malfunction occur during the process of machining, please stop the machine  and make troubleshooting.

Notice2: Make correct selection about molding axle-sleeve or axle, then install them in the working disk along with suitable shaft-sleeve. In addition to the above, put the frame for dominating stuff into the plank for steel column, then make the machine idle to examine if it work normally. If no defaults, then make it bend the rebar.

6.2.3 Manual mode (the power light is on)







6.2.4  Automatic mode (the power light is off )

1)check working direction

If working direction is not convenient for operator, you can change the working direction.if it is ok, go to next step directy. After power on, the correction value number is Positive number,it mean panel will turn left direction,





the the correction value number is negative number,it mean panel will turn right direction.if want to change the turn direction, press ok

button until the direction changed.



  • Modify the phase when set direction is not correct

After set the working direction, press forward or reverse 2 seconds to check if set direction and real direction is not same, then it will modify working direction automatically.the correction value will show 444 and alarm,after 5 seconds ,it will modify and reset itself, when finish, the modify phase succeed.



  • Machine parameter checking itself

When working direction and phase are ok, do not put rebar,press set more 2 seconds less 7 seconds, then machine start machine parameter checking itself status. Machine will checking by 90 degree, when finished parameter checking first time, it is no need to do for next time. After long time, operator can use Machine parameter checking itself to adjust machine.

Notice:when press ok more 8 seconds, machine will start warm up status, it will work automatically 99 times.

4) set process and angle

   According to stirrups shape,choose the process , if one step can making the stirrups, process is 1, stirrups angle + or – to set the angles. If stirrups need serval step to make it out, set the process and its angle, when set well, press ok.



If want to delet process, press set, choes the process, then press correction.



5 ) Start work

After angle set, press forward or reverse to make panel turn until the correct position, press foot switch one time . the working panel will turn from the process 1 angle,it will back to original position when finished.

6)How to modify angle

When process one stirrup, and its angle not correct, press correction, and press angle + or – to modify the angle.the modify value will show in correction value.



  • Set serval stirrups number

Press set, press angle + or – to set stirrups number.

























7  Maintenance



The reduction gearbox of GW automatic stirrup bender series machines contains gears and castellated shafts and want lithium-based grease 5~10kg.When it has worked for  3  months, the operator should exchange the lubrication oil in it and do it every three months from then.

Before exchange the lubrication, remove one side of guard board on the machine, then remove the case cover on the reduction gearbox, fill specified lubrication oil to make all mobile parts work normally. Above all, the operator should make irregular inspect about the lubrication when the machine work continuously.

8.2 When the machine is out of service for long-term time, please cut off the general power, put it in storage, cover it and give moisture-proof protection. all parts exposed  should be coated with rust-preventative oil.

8.3 After Stop the machine, the users should make the power switch out of service and clean attachments on or in the equipment .If the machine is out of service for long time, please daub rust-preventative oil on these parts for work and cover them.









8  Diagnosis



Malfunction Causes Eliminating Methods
Alram code   1 Stirrup show 1 and flash,the error of the back original angle more than 25 degrees Do not put rebar,press foot switch,it will back the position itself and no alarm.
Alram code   2222 Panel forward turn time more than set time,default is 180,mean 18s can be adjust.
Alram code   3333 Panel reverse turn time more than set time,default is 180,mean 18s can be adjust.
Alram code   4444 Mean pahse direction It can modify itself and reset.
Alram code   6666 Encoder damage Replace encoder
Alram code   9999 Encoder no connect or no turn, Press forward or reverse to check if panel can turn or not. If can’t forward turn,check the plug and contactor.
1.Tank oil leakage 1. oil plug Loose 1. sturdy
2.damage to the lower bearing cushion or oil seal 2. replace the oil seal or paper pad
2. Abnormal noise, 1.lack of oil 1. add slip oil
3.Larger diameter steel bars are not bent. 1.belt loosening. 1.Re-tightening or replacing the V-belt
4.The motor does not work 1. the power cord is not powered. 1. check the line
2. contactor contact burnout 2. replace the contactor or repair

Notice: machine reset

Press correction until show 888 ,after reset ok, then press correction button one time.



Itech as one professional steel wire/bar processing machinery China supplier,automatic stirrup bender,Stirrup Bending machine,CNC stirrup bar bending machine,stirrup wire bending machine and bar shape machine,cage making machine,,steel wire straightener, wire mesh welding machine,rebar shear line,sawing&threading line and related cnc plasma cutting machine, laser cutting machine can meet different customers’ requirement.

stirrup bending machine

High quality steel rebar Stirrup bender in cut&bend factory

High quality steel rebar Stirrup bender in cut&bend factory



rebar shear line

Cut&Bend is a value added Rebar solution for the optimization and fabrication of Rebar in a factory. Based on the bar bending schedule (BBS), steel bars are cut to custom sizes and bent to specific shapes. Cut & bend are very accurate and precise since the entire manufacturing process is automated in steel factory.

Why Cut &Bend ?

Cut Bend gives you an absolute control over the structural design and execution.

Faster construction

Savings upto 2% on steel

Zero wastage

No double handling

No storage required

Zero damage to rebars

Safe construction

Zero pilferage

stirrup bending machine

High quality steel rebar Stirrup bender is usually for coil, 12mm stirrup bender, 16mm stirrup bending machine, one day one automatic stirrup bender process 4-5 tons 8hours, some high quality stirrup bender process double wire, high speed, huge production capacity. Especially the anti twist stirrup bending machine, it avoid the gap of stirrups, no damage for ribs.



Itech as one professional steel wire/bar processing machinery China supplier, good  steel rebar stirrup bender, Stirrup Bending machine,CNC stirrup bar bending machine,stirrup wire bending machine and bar shape machine,cage making machine,,steel wire straightener, wire mesh welding machine,rebar shear line,sawing&threading line and related cnc plasma cutting machine, laser cutting machine can meet different customers’ requirement.

contact us whatsapp+8615210021224





steel rebar stirrup bender machine supplier manufacture China

steel rebar stirrup bender machine supplier manufacture China



Itech as professional steel rebar stirrup bender machine supplier manufacture China,we have

high quality 16mm stirrup rebar bending machine. there are steel wire bar bend&cut machine supplier in China,Itech provide top high quality anti-twist rebar stirrup bender machine in production line and double bender.

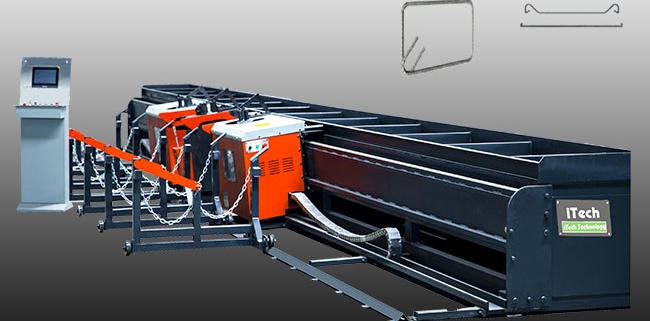

double bender supplier manufature

We promise to provide top class high quality machine,and also best service for all over the world.You get what you paid, we never low quality to get customer, so we can be trust by customer and support by many customers too.

rebar shear line

Itech as steel rebar stirrup bender machine supplier in China,

one professional steel wire/bar processing machinery China supplier,Stirrup Bending machine,CNC stirrup bar bending machine,stirrup wire bending machine and bar shape machine,cage making machine,,steel wire straightener, wire mesh welding machine,rebar shear line,sawing&threading line and related cnc plasma cutting machine, laser cutting machine can meet different customers’ requirement.



How much automatic stirrup bender factory price in China ?

How much automatic stirrup bender factory price in China ?

Itech Best selling CNC stirrup bending machine / CNC stirrup bender price is competitive in China. rebar bending machine is important machine for small rebar shop, cut&bend factory, construction site.

stirrup bender fprice

Itech have a series of rebar bender machine,like CNC Stirrup Bending machine,CNC stirrup bar bending machine,stirrup wire bending machine and bar shape machine,cage welding machine, mesh welding machine,rebar shear line, rebar threading line, truss girder welding machine.anti twist Stirrup bender have advanced feeding system to avoid twist of steel, making standard rate reached 100%; cutting structure is used multi-faceted with a knife design, improve the rebar bender knife life. With international servo drive, big production capacity so that can meet requirement.

cage welding machine

  1. automaticstirrup bender price in China, have big difference. Cheap stirrup bender some time no good after service, some factory price stirrup rebar bending machine no guarantee on quality.
  2. Italy stirrup rebar bender always is leader in cut and bend machine market, stirrup bender price is 78000-90000 usd.
  3. Stirrup Bending Machine has high precision servo motor control, movable touch screen operation, bending stirrups graphics library, convenient to choose and work smoothly.
  4. The advanced feeding system is feature ofitech stirrup bending machine,it can anti-twist for steel, make stirrup more standard,ring making more accurate. So it have many advantages than traditional stirrup bender of peers in China.

itech wire bending machine were sold to all over the world ,customer used CNC stirrup bending / usded CNC stirrup bender successfully in many countries.

Itech as one professional steel wire/bar processing machinery China supplier,stirrup bending machine, rebar bending machine,cage making machine,,steel wire straightener, wire mesh welding machine,rebar shear line,sawing&threading line and related cnc plasma cutting machine, laser cutting machine can meet different customers’ requirement.https://itechbendingmachine.com/
